THAKKER Set 03 – Adjustment and Setting Set with Digital Tonearm Scale, Azimuth, Bubble Level and Cartridge Alignment Protractor
Item-ID: 11277
We will gladly inform you as soon as the article is available again.
I hereby confirm that I have read the Privacy policy.*THAKKER® alignment set with digital tonearm level, azimuth, spirit level and cartridge alignment protractor for correct adjustment of your record player.
THAKKER® DSFG-01 – Digital tonearm scale with anti-magnetic stainless steel support with marking of the optimum support position of the tonearm stylus. With this high-precision digital tonearm scale with a very finely tuned tolerance range of +/- 0.01g, you can quickly and easily determine the exact support weight of your tonearm stylus.
When setting the contact force, please always observe the respective manufacturer's specifications for the stylus you are using.
Always adjust the contact force to the specific model in order to avoid damage or premature wear of your stylus or sound carrier.
Tolerance range:
+/- 0,01 g
Power supply:
2 x batteries Micro AAA (not included)

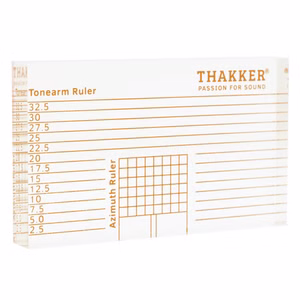

THAKKER® AZR-01 – the revised Azimut and Tonearm Ruler makes it easier to focus and aim the scale, cantilever and tonearm with optimised contrasts and optically decoupled focus planes. With this tool, all important adjustment of your turntable is done in no time. The adjustment tool is made of robust, clear acrylic glass and comes safely packed in a foam inlay.
THAKKER® BL-40 – with this useful box level, the all-important accurate alignment of your turntable is done in no time. The cylindrical bubble level made of robust, clear acrylic glass is used for the exact, uncomplicated levelling of your record player – the basis of every correct system assembly.
THAKKER® CAP-01 – The simple adjustment aid for correct cartridge alignment according to the proven 2 point method. Due to the thickness of the material, it is not necessary to carry out the setup with the record in place (material thickness simulates record thickness).
Due to its special design, this template can also be used on turntables with the stylus light switched on. It is compatible with many devices from Audio-Technica, Technics, Pioneer and many more.
IMPORTANT
Only cartridges that are correctly adjusted to your record player can realise the full potential of your records and your playback system.
Incorrectly fitted cartridges can cause unwanted loss of sound and even premature wear or damage to your discs and styli.
Tonearm scale technical specifications:
- Tolerance range: +/- 0.01g
- Measuring range: 0.01g - 200g
- Power supply: 2 x Micro AAA batteries (not included)
- Width: 68mm
- Height: 18mm
- Depth: 85mm
Azimuth technical specifications:
- Material: Acrylic glass
- Width: 75,2mm
- Height: 45mm
- Depth: 9.2mm
- Weight: 37g
Bubble level technical specifications:
- Material: Acrylic glass
- Diameter: 40mm
- Height: 10mm
- Weight: 12g
Cartridge alignment protractor technical specifications:
- Material: Acrylic glass (opaque, white)
- Length: 190mm
- Width: 40mm
- Height: 1.8mm
- Weight: 37g
