Audio Technica AT-VM95SP/H Moving Magnet Cartridge incl. AT-HS6 Headshell

Also compatible replacement styli: AT-VMN95C, AT-VMN95E, AT-VMN95EN, AT-VMN95ML, AT-VMN95SH and AT-VMN95SP

Item number
9548
Manufacturer
Audio Technica

€79,00 71,10

incl. VAT. excl. shipping


On Stock

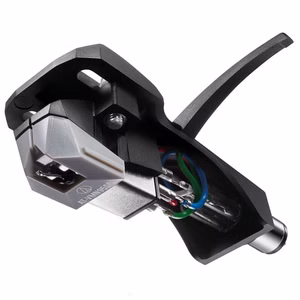

VM95 series 78rpm SP cartridge on AT-HS6 Headshell

  • AT-VM95SP mounted on AT-HS6BK headshell
  • The total set weight is 15.5g
  • Assembled and tested in the Audio-Technica Factory in Fukui-Japan


VM95 Series - Styli compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.



Conical Bonded (3mil) Stylus

A conical bonded stylus with a large curvature radius at the tip. The curvature radius is 3 mil, and suitable for playing 78 RPM records from a wide variety of eras.

Preassembled With AT-HS6BK Headshell

The AT-VM95SP cartridge is fitted onto the 9g aluminiumdie cast body headshell

Type VM Dual Magnet
Mounting Half-inch
Frequency Response 20 - 20,000 Hz
Channel Separation NA
Output Channel Balance 1.5dB
Output Voltage 2.7 mV (mV at 1 kHz, 5 cm/sec)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 4.5 - 5.5g
Stylus Shape Conical
Stylus Size 3.0 mil
Stylus Construction Bonded Round Shank
Cantilever Aluminium Pipe
Coil Inductance 550mH (1 kHz)
Static Compliance 12 x 10-6 cm/dyne
Dynamic Compliance 2.0x10-6cm/dyne (100Hz)
Recommended Load Impedance 47,000 ohms
Recommended Load Capacitance 100-200 pF
Weight 15.5g
Dimensions H21.2×W21.4×D62,4mm
Replacement Stylus AT-VMN95SP
