Audio Technica
Audio Technica AT-VM95E/H Moving Magnet Cartridge incl. AT-HS6 Headshell - B-Stock
Item-ID: 10590
We will gladly inform you as soon as the article is available again.
I hereby confirm that I have read the Privacy policy.*B-Stock:
Returns, slight signs of wear due to packing and unpacking possible. With full guarantee, invoice with stated VAT from the authorized German Audio Technica dealer. The article will be delivered in the original packaging, the outer and / or inner box may show signs of use and / or damage.

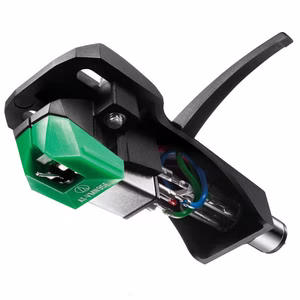

AT-VM95E/H
VM95 series Elliptical stereo cartridge on AT-HS6 Headshell
- AT-VM95E mounted on AT-HS6BK headshell
- The total set weight is 15.5g
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan
VM95 Series - Styli compatibility
Every cartridge diamond stylus becomes worn after a period of play.
Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.
Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.
The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.
Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
Preassembled With AT-HS6BK Headshell
The AT-VM95E cartridge is fitted onto the 9g aluminiumdie cast body headshell
| Model | AT-VM95E/H |
| Type | VM Stereo Dual Magnet |
| Mounting | 1/2” centres |
| Frequency Response | 20 - 22,000 Hz |
| Channel Separation | 20 dB (1 kHz) |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Output Voltage | 4.0 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force Range | 1.8 - 2.2g (standard 2.0 g) |
| Stylus Shape | Elliptical |
| Stylus Size | 0.3 x 0.7 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Static Compliance | 17 x 10 – 6 cm / dyne |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil | T.P. Copper |
| Recommended Load Impedance | 47,000 Ω |
| Recommended Load Capacitance | 100-200 pF |
| Weight | 15.5 g |
| Dimensions | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Replacement Stylus | AT-VMN95E |
