This cartridge is an unused exhibit that was showcased in a display case during this year's High End trade fair in Munich. After the exhibition, the model was repackaged and delivered exclusively to Thakker.

.................................................

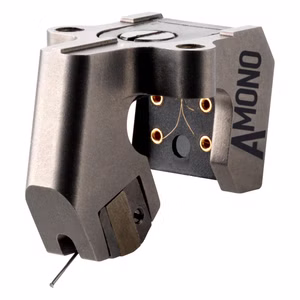

MC A Mono Cartridge

The MC A Mono is a TRUE MONO cartridge for play-back of MONO recordings. If you play a MONO record with a stereo cartridge you will not achieve the same signal in the two channels due to imperfections such as crosstalk, noise, phase errors, tracking error, antiskating and distortion.

This difference between the channels will result in an unstable and partially fuzzy image. A mono switch, to some extent, can improve this.

Accuracy level

Playing MONO record with a TRUE MONO cartridge will have none of the aforementioned problems, as this cartridge only produces one signal, which afterward is directed to both channels in the system. This will provide a much more forceful and stable image with a fuller sound.

Another significant advantage of using a TRUE MONO cartridge to play MONO records is the absence of response to vertical movement. This means that a TRUE MONO cartridge is essentially impervious to the pinching effect which comes into action when the stylus is pushed vertically upward in very narrow grooves. In addition, the response to dust, dirt, and wear will be reduced substantially as the vertical component will not be heard. The final result will be a much more clean and noiseless reproduction of the MONO record. These effects simply cannot be achieved merely by the use of a mono switch.

Stylus

One of the preconditions for linear reproduction with a wide frequency range and optimal tracking performance is a diamond - the shape of which is as close as possible to the original cutting stylus. As in the entire Exclusives series cartridges, the MC A MONO makes use of Ortofon’s Replicant 100 diamond, known for its thin and light profile and extraordinarily large contact surface.

Since the Replicant 100 is closest to the shape of the cutting stylus, it can trace with accuracy unparalleled by any other needle in existence. Special polishing of the diamond, along with the use of a Boron cantilever, offer remarkable transparency, speed, and responsiveness beyond that of any other combination.

Cartridge body

The housing of the cartridge is made in Titanium with the Selective Laser Melting manufacturing technique (SLM). The SLM technique was pioneered by Ortofon for manufacturing of the MC A90 and the SPU A90 cartridges and was refined in subsequent Exclusive Series models. The SLM process welds fine particles of Titanium together, layer-by-layer, to construct a single piece body devoid of extraneous material.

This technique allows for precise control of the density of the body material, allowing for extremely high internal damping. The final result provides freedom over vibrations within the cartridge body material. The use of Titanium has provided a further improvement to the internal damping capabilities as well as to the overall rigidity of the structure.

Boron cantilever

Using Ortofon’s Aucurum coils of gold-plated, 6NX oxygen-free copper allows for zero-loss transmission of the diamond’s movements via its Boron cantilever. This combination, which has also been employed for use in the MC Windfeld, MC A90, and MC A95 cartridges, combines low moving mass with an extremely high degree of rigidity.

Magnet system

The magnet system is based on an extremely strong, compact neodymium magnet, which makes the generator system both compact and lighter through its minimal dimensions. Inspired by the elements of MC A95 design, the MC A MONO makes use of a specially designed armature comprised of a metal alloy which is much less magnetic than normal iron. This provides noteworthy benefit to the dynamic capabilities of the cartridge since the armature has almost no influence on the magnetic field during movement. When combined with the Aucurum coils, it delivers perfect reproduction of the cantilever movements without compromise.

Any trace of remaining magnetic influences that would create distortion is prevented by the use of a Field Stabilizing Element (FSE). Ortofon’s FSE, a small cylinder of conductive material strategically placed inside the magnet system, guarantees that the force field remains stable regardless of the movement of the armature. FSE improves the channel separation, while at the same time minimizing dynamic distortion and intermodulation.

Rubber suspension

Adding to the list of important components is Ortofon’s patented Wide Range Damping (WRD) system. In this system, a small, heavy platinum disc is sandwiched between two rubber absorbers, both with different properties. This ensures not only an exceptional tracking performance, but also creates a perfect damping through the entire frequency spectrum. Because of this, distortion and resonance are virtually eliminated entirely.

The Wide Range Damping system, which was originally introduced in the MC 20 Mk II in 1979 and then was also consequently used in the entire Exclusives series cartridges, is one significant reason why the MC A MONO, while achieving the most linear frequency response and the highest upper frequency limit ever, at the same time tracks a fantastic 90 μm at a vertical tracking force of 2.3 grams.

Product safety information

Manufacturer:

Contact: Email:

EU-Responsible Person:

Contact:

Output voltage at 1 kHz, 5cm/sec: 0.2 mV
Frequency response: 20 Hz - 20 kHz +2 dB/- 1 dB
Tracking ability at 315 Hz: 90 µm
Compliance, dynamic, lateral: 13 µm/mN
Cantilever material: Boron
Stylus type: Special polished Nude Ortofon Replicant 100
Stylus tip radius: r/R 5/100 µm
Tracking force range: 2.0-2.5 g (20-25 mN)
Tracking force, recommended: 2.3 g (23 mN)
Tracking angle: 23°
Internal impedance, DC resistance: 7 Ohm
Recommended load impedance: > 10 Ohm
Coil wire material: Aucurum, gold-plated, 6NX oxygen free copper
Cartridge body material: SLM Titanium
Cartridge colour: Silver
Cartridge weight: 6 gram
